The ASTM D8485 is a laboratory glassware corrosion test used to evaluate how engine coolants affect common cooling system metals. This test is used to measure the effect of coolants on metal test specimens that are similar to the metals present in electrical vehicle (EV) engines. The ASTM D8485 is very similar to ASTM D1384, but uses a different number of specimens and a different assembly of the specimens.
ASTM D8485 test specimens are 1 x 2 x 1/16 inches and have a 17/64-inch center hole. These specimens are prepared in the same way as ASTM D1384 test specimens.
The apparatus is available in the following voltages/frequencies:
- Tamson ASTM D8040 230V/50-60Hz (P/N: 00T2040)
- Tamson ASTM D8040 115V/60Hz (P/N: 00T2041)
See tab "More information" for the specificationsheet and manual
The ASTM D8485 is a laboratory glassware corrosion test used to evaluate how engine coolants affect common cooling system metals. This test is used to measure the effect of coolants on metal test specimens that are similar to the metals present in electrical vehicle (EV) engines. The ASTM D8485 is very similar to ASTM D1384, but uses a different number of specimens and a different assembly of the specimens.
ASTM D8485 test specimens are 1 x 2 x 1/16 inches and have a 17/64-inch center hole. These specimens are prepared in the same way as ASTM D1384 test specimens. The standard ASTM D8485 test specimen set includes:
- Copper (UNS C110000, C110) specimen
- Stainless steel (UNS 30400, Grade 304) specimen
- Aluminum (UNS A93003, 3003) specimen
The ASTM D8485 is also known as the “Glassware Test” involves:
- A controlled lab setup
- Metal coupons immersed in coolant
- Air which is bubbled through the solution
- A test duration: 336 hours (14 days)
Metals to be tested
- Copper
- Brass
- Solder
- Steel
- Cast iron
- Aluminum
The purpose is
- To screens coolant formulations
- Measures corrosion by weight loss of metal coupons
The ASTM D8485 is used for passenger car and light-duty coolant validation. It's a pre-qualification of coolant chemistry and to check many OEM and coolant specification requirements

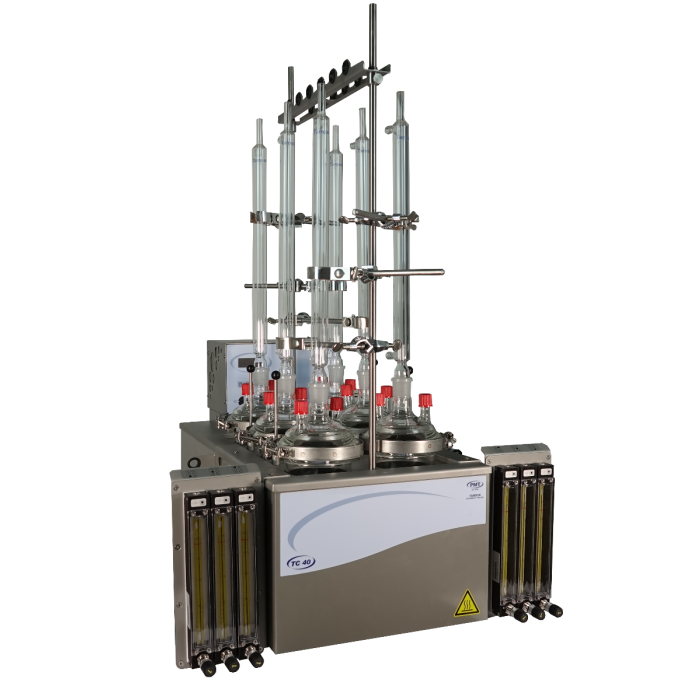

Main Features:
- Complete apparatus for ASTM D8485
- All accessories can be supplied by Tamson
- Robust bath
- All wetted parts are made from stainless steel
- Bath drain
- Bath is equipped with cooling coil for counter-cooling
- Six positions
- Six flowmeters included
- Very robust glassware with clamp to ensure proper sealing
- Level protection device
- No rubber stopper is needed, as rubber stoppers can crack over time
The apparatus is available in the following voltages/frequencies:
- Tamson ASTM D8485 230V/50-60Hz (P/N: 00T2040)
- Tamson ASTM D8485 115V/60Hz (P/N: 00T2041)
See tab "More information" for the specificationsheet and manual
| Bath_accuracy | 0.02°C |
|---|---|
| Bath Volume | 40 L |
| bath height | 880 mm |
| Bath Width | 650 mm |
| bath length | 760 mm |
| bath depth | 200 mm |
| bath max temp | +250°C |
| Minimum Temperature | Ambient |
